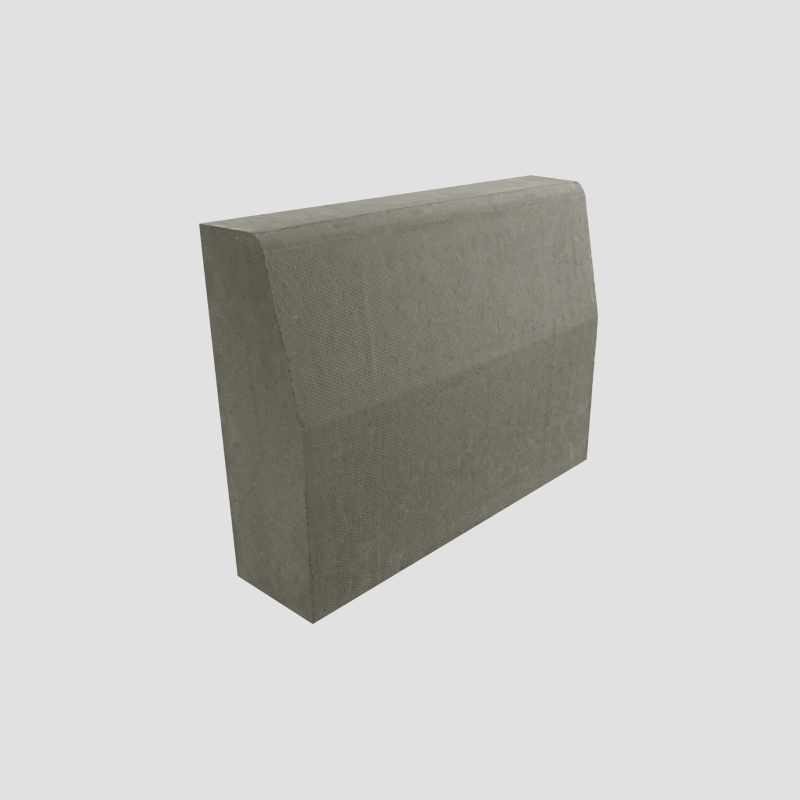

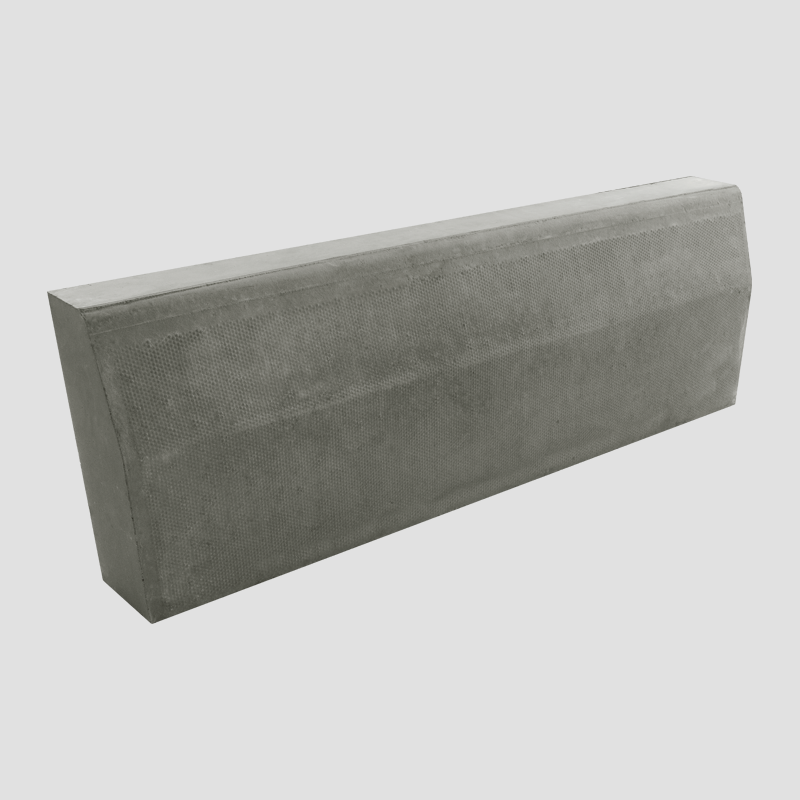

Half Battered
Size
HB KERB 2 FEET
600mm x 450mm
600mm x 450mm
HB KERB 3 FEET
914.4mm x 304.8mm
914.4mm x 304.8mm
Half Battered
One of the most widely seen varieties worldwide, the Half Battered Kerb is a cost effective and extremely popular kerbing solution. Its main function and usage is on major roads and pathways, to warn motorists of close proximity to the edge of the carriageway. The inherent shape of the Half Battered Kerb also has the additional advantage of allowing road rollers to operate right upto the edge of the pavement without scratching or damaging the kerb surface.
Magnacrete’s Half Battered Kerbs are manufactured in a state-of-the-art fully automated hydraulic press, giving them a much higher strength, durability and surface finish without voids. This sets them apart from other kerbs available in the market.
Thickness
- 101.6mm
- 127mm
- 150mm
- 152.4mm
Product Gallery
01
0
Product Suitability
![Cycling]()
Cycling![Pedestria]()
Pedestrian![Trolly Freindly]()
Trolly Freindly![Light Vehicle]()
Light Vehicle
Product Finishes
![Curling]()
Curling![Multi Color]()
Multi Color![Micro Chamfer]()
Micro Chamfer
Technical Details
| # | Length & Width mm |
|---|---|
| 1 | 240 x 160 |
| 2 | 240 x 240 |
| 3 | 120 x 160 |
| 4 | 350 x 160 |
| 5 | 360 x 240 |
Application |
Texture |
Thicknessess |
Layers / pack |
Sq. ft / Layer |
Sq. ft / pack |
Weight kg / pack |
|---|---|---|---|---|---|---|
Flooring |
Hammered or Smooth |
60.mm | 14 | 9.8 sq.ft | 137.2 | 1730 |
| 80.mm | 12 | 9.8 sq.ft | 117.6 | 1977 |
| 914.4 x 304.8 x 101.6 | 914.4 x 304.8 x 127 | 914.4 x 304.8 x 152.4 | 600 x 450 x 150 | |
| Pieces In Per Pack | 24pcs | 21pcs | 18pcs | 20pcs |
| Weight Kg Per Piece | 61.Kg | 78.Kg | 94.Kg | 88.Kg |
| Weight Kg Per Pack | 1464.Kg | 1638.Kg | 1692.Kg | 1760.Kg |
